Recessed Boxes

Please fill out the form below and a member of our team will be in touch.

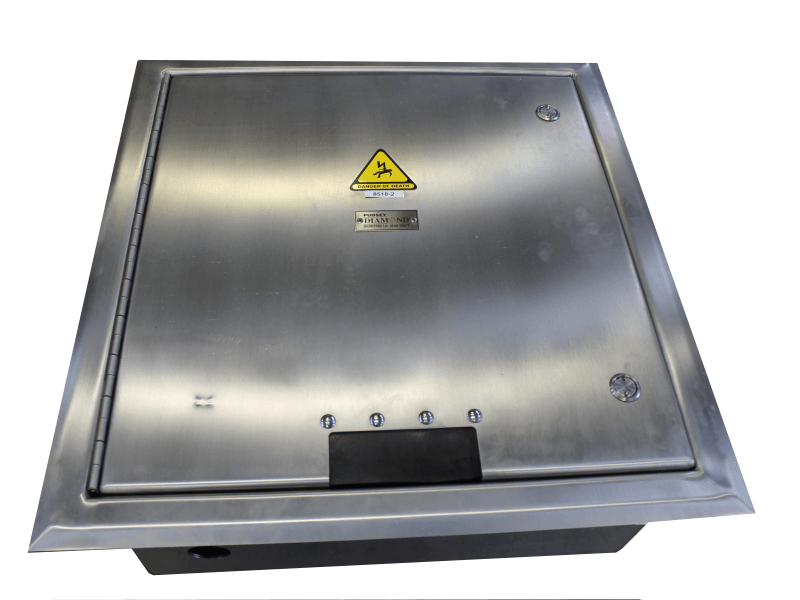

These are a robust wall box designed to be built into either a brick, block or a poured concrete wall recess, such as subways, tunnels or bridges. They are available in a range of sizes, and the side faces of the box can be drilled to suit cable entry and exit positions.

Features:
  • 3mm steel, hot dip galvanised after manufacture to BSEN ISO1461:2009
  • Fully welded construction
  • Front bevelled surround with a flanged door all round to provide structural rigidity
  • Doors sit inside a flanged frame, providing high resistance to leverage & vandalism
  • Earth fly lead directly from the box body to the box door
  • Designed to Ingress Protection IP44
  • Robust hinges
  • Tri head or recessed pin anti vandal lock option
  • Treated wooden backboard

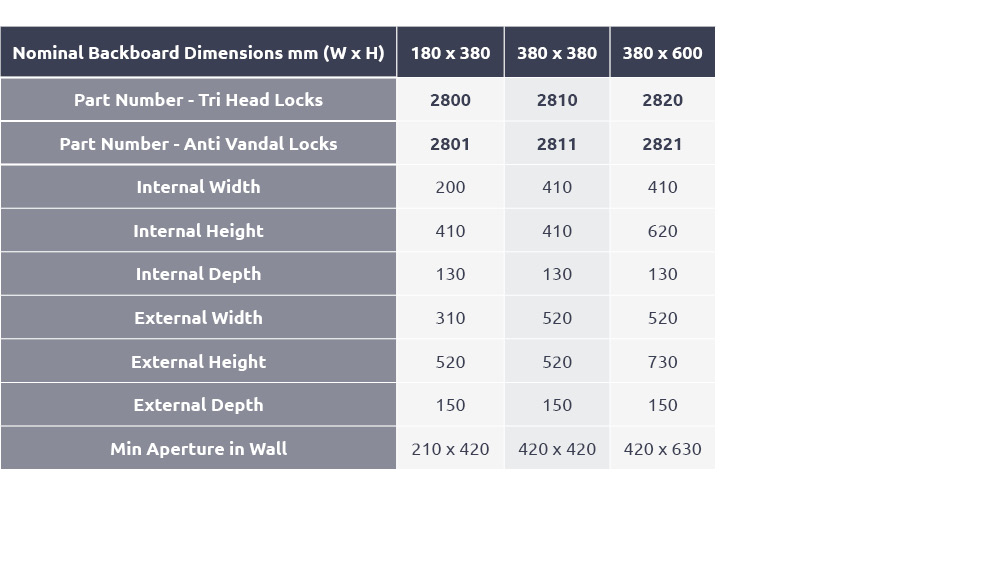

View product information table (contains information on product order numbers and specifications)
